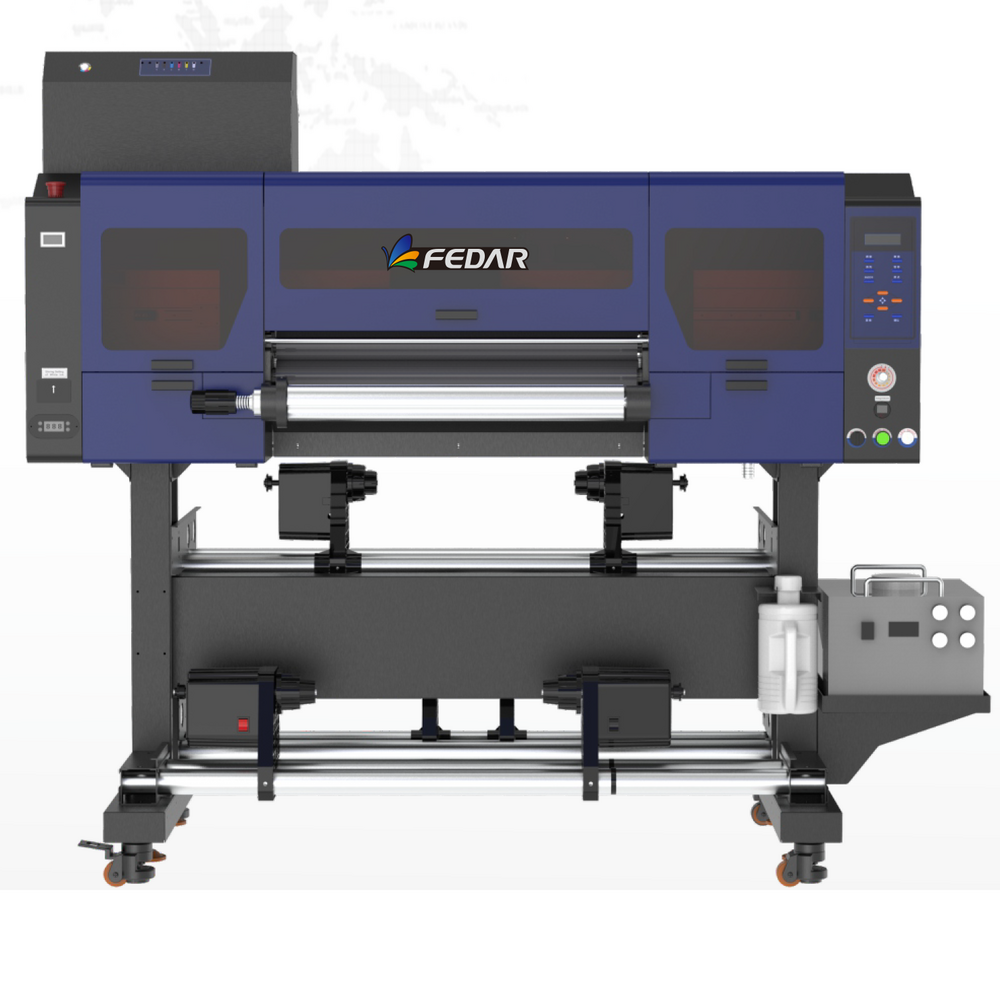

Fedar UV DTF Printer 24 Inch

Name: Fedar UV DTF Printer 24 Inch
Brand: IMPRINT SOLUTION
Price: 900000 INR
Availability: InStock

Price 900000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fedar UV DTF Printer 24 Inch Specification

Type
UV DTF Printer

Material
Industrial Grade Metal Frame

Capacity
24 Inch Printing Width

Printing Speed
8-16 sqm/hour

Computerized
Yes

Automatic Grade
Automatic

Plate Type
Flatbed

Print Direction
Bi-Directional / Uni-Directional

Ink Type
UV Ink (CMYK+W+Varnish)

Color Management
ICC Based Color Management System

Control System
Intelligent Control Panel

Working Temperature
20-30C

Power
AC 220V, 50/60Hz

Size
Medium Format

Width
24 Inch (610mm)

Weight (kg)
Approx. 220 kg

Dimension (L*W*H)
1850 x 760 x 1530 mm

Media Type
PET Film, Vinyl, Hardboard, Glass, Leather, Ceramic, Metal, Acrylic

Cooling System
Advanced Water Cooling System

Printhead Technology
Epson I3200-U1 Dual Printheads

Interface
USB 2.0 / Ethernet

Media Thickness
Up to 8mm

Noise Level
60dB

Usage
Direct to Film Transfers for Textiles, Crafts, Packaging

Cleaning System
Automatic Printhead Cleaning

Curing System
High Power LED UV Lamp

RIP Software
Photoprint / Maintop Supported

Resolution
Up to 1440 x 1440 dpi

Voltage
220V 10%

Operation Environment
Humidity 35-65% RH, Temp 20-30C

About Fedar UV DTF Printer 24 Inch

Fedar 24 UV DTF Printer

The Fedar 24 UV DTF Printer is a high-performance wide-format UV-curable Direct-to-Film printing solution designed for professional print shops and custom graphics businesses. Built around advanced Epson-based printhead technology and integrated UV curing, this robust printer delivers vibrant, durable, and ready-to-use DTF transfers for stickers, decals, signs, packaging prototypes, and decorative surface applications.

Key Features & Benefits

24Wide Print Width: Capable of handling rolls up to 24 inches (61 cm) wide, allowing for larger graphics, gang runs, and mixed print layouts in a single pass.
Advanced UV DTF Print System: Uses multiple Epson i3200-U1 industrial printheads configured for UV inks including CMYK + White + Varnish, delivering excellent color saturation, opacity, and optional protective finishes.
Integrated UV Curing: Built-in UV lamps instantly cure printed inks as they come off the press, producing prints that are durable, scratch-resistant, and ready for transfer or finishing without additional drying equipment.
Smart Ink & Maintenance Systems: Includes automatic white ink circulation and cleaning cycles to prevent ink separation, reduce downtime, and maintain print quality over long runs.
Precision Media Handling: A vacuum platen and tension system keep film flat and stable throughout printing, for consistent ink laydown and minimal waste.
User-Friendly Control: Simple control interface with status alerts helps operators manage print jobs efficiently.
Versatile Workflow: Compatible with popular RIP software (e.g., Maintop, FlexiPrint, Fiery) for advanced color management and production control.

Applications

Custom decals & graphic transfers
Signage & promotional prints
Packaging prototype graphics
Stickers with white and varnish effects
Decorative graphics on various hard materials

Superior Print Quality With Dual Printheads

Featuring Epson I3200-U1 dual printheads, the Fedar UV DTF Printer ensures vibrant colors, sharp detail, and photorealistic results at resolutions up to 1440 x 1440 dpi. With precise bi-directional or uni-directional printing options, users can comfortably achieve both fast and high-quality outputs for demanding production environments.

Versatile Media Compatibility

Designed to print on diverse substrates-including PET film, vinyl, hardboard, glass, leather, ceramic, metal, and acrylic-the printer accommodates media up to 8mm thick. This adaptability makes it suited for direct-to-film transfers in textiles, crafts, and packaging, meeting the evolving needs of modern businesses.

Cutting-Edge UV Curing and Cooling Systems

The high-power LED UV lamp delivers consistent curing, while an advanced water cooling system safeguards both media and printheads during long runs. The automatic printhead cleaning maintains top performance, minimizing downtime and user intervention. Together, these features ensure reliability and long-term sustainability.

FAQ's of Fedar UV DTF Printer 24 Inch:

Q: How does the Fedar UV DTF Printer ensure high print quality?

A: The printer utilizes Epson I3200-U1 dual printheads, offering up to 1440 x 1440 dpi resolution. Combined with ICC-based color management, it delivers detailed, vibrant images ideal for demanding applications such as textiles, crafts, and packaging.

Q: What media types can I print on with this printer?

A: This model supports a broad range of media, including PET film, vinyl, hardboard, glass, leather, ceramic, metal, and acrylic, up to 8mm thick. Its flatbed design ensures accurate placement and superior results on both flexible and rigid materials.

Q: When should the automatic printhead cleaning system be operated?

A: The automatic printhead cleaning system is designed for regular use and initiates cleaning cycles based on usage or whenever a print quality issue is detected. This helps maintain consistent output quality and prevents clogging.

Q: Where can this printer be effectively used?

A: The Fedar UV DTF Printer is ideal for businesses involved in textiles, custom crafts, promotional items, sign making, and specialty packaging. Its versatility allows it to be utilized in print shops, manufacturing facilities, and export-oriented industries.

Q: What is the primary process for direct to film transfers using this printer?

A: The process involves printing the desired design onto PET film with UV ink, curing it instantly with the high-power LED UV lamp, and then transferring the design onto the final substrate-such as fabric or hard surfaces-using heat and pressure as needed.

Q: What are the main benefits of choosing this model?

A: Key benefits include exceptional print quality, the ability to handle diverse materials, fast production speeds, reliable automatic maintenance features, and reduced user intervention. Its industrial-grade construction supports continuous and efficient operation in professional settings.
